Indi-Borer - Yantra Weld

Simple operation, perfect appearance, light volume, stable welding rotation, large welding stroke, intelligent brushless motor and intelligent drive.

Indi-Borer - Yantra Weld

The Indi-Borer Yantra Weld is simple to operate, with light volume, offering a stable welding rotation, large welding stroke, innovative brushless motor and drive.

Its welding supply power can (wire feeder + electric welding machine) can work with the automatic welding our company produces.

The changed welding power supply has a stable output current, low cost and long life.

Customers are recommended to choose a welding power source when purchasing automatic welding.

FACER & BORING BAR

High-quality steel offers smooth rotation, ideal processing, clean surface and automatic feed.

Customers are recommended to choose Facer when purchasing boring machines.

The boring bar is straight and made of high-quality steel that has the functions of smooth rotation, good processing, and a clean surface with automatic feed.

The boring bar is made of high hardness material with a smooth surface, even texture and very straight.

The length and diameter of the boring bar can be customized according to the processing requirements, 40/50/60*1500-5000 mm.

Additionally, it can also be customized to a universal joint boring bar.

Specifications:

ITEM UNIT DBW50A BORING AND WELDING INTEGRATED
Voltage
V
220 V
Max. Diameter of Boring Hole
mm
55-280 mm
Length of Boring Bar
mm
1500/2000/2500 mm
Spindle Movement
mm
290 mm
Maximum Turning Amount
mm
2 mm
Driver System
--
Servo Motor
Motor Power
KW
1.8 KW
The Spindle Speed
rpm/min
0-170 rpm/min
Feed Rate
mm/rpm
5 mm/rpm
The Range of Feed Speed
mm/min
0-80 mm/min
Torque
N/M
76.4 N/M
The Surface Roughness
Ra
3.2 Ra
Boring Roundness Error
mm
0.02 mm
The Support Structure
--
screw
The Range of Milling
mm
55-230 mm

Shared Accessories:

Tool

Tool Bar

Tool Holder

Nylon Sleeve center

Screw

Welding Rod

Insulation Sleeve

Front & Rear Fix Seat

Welding Tip

Face Milling Optional configuration

04-min

Dioxide Welding Machine Working Component Set Optional

Welding Installation

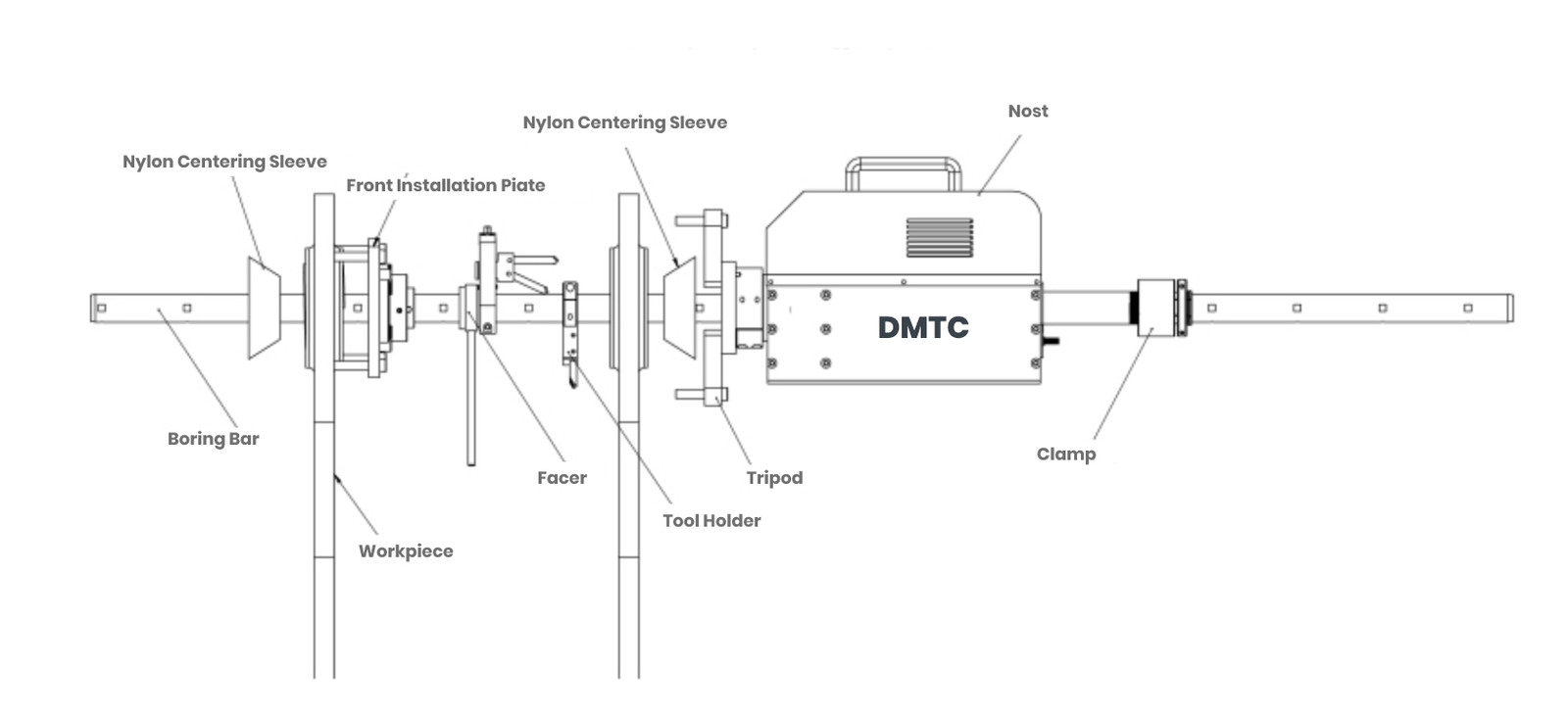

Boring Installation

Why Choose Us

Domestic well-known brands
of electrical components, 12
months warranty

Unknown manufacturer
accessories no warranty.

The boring bar is made of
high-quality 45 # quenched
and tempered steel, after
quenching, and the surface is
chrome-plated.

Boring bar 45 # steel, but
without quenching, poor
straightness, poor hardness,
and small cutting force
